Added to catalog of terms: Strategy Pattern (#196)

ledjon-behluli · web-flow · commit 54d209639e50 · 2021-04-21T23:01:54.000+02:00
Authored-by: Ledjon Behluli &lt;Ledjon@notiphy.io&gt;
diff --git a/docs/catalog-of-terms/README.md b/docs/catalog-of-terms/README.md
@@ -71,7 +71,7 @@
 - Read Model
 - Repositories (DDD)
 - Single Responsibility Principle
-- Strategy Pattern
+- [Strategy Pattern](Strategy-Pattern/)
 - Stub
 - Synchronous Communication
 - Transaction (Database)
diff --git a/docs/catalog-of-terms/Strategy-Pattern/README.md b/docs/catalog-of-terms/Strategy-Pattern/README.md
@@ -0,0 +1,217 @@
+# Strategy Pattern
+
+## Definition
+
+*The strategy pattern (also known as the policy pattern) is a behavioral software design pattern that enables selecting an algorithm at runtime. Instead of implementing a single algorithm directly, code receives run-time instructions as to which in a family of algorithms to use.*
+
+Source: [Wikipedia](https://en.wikipedia.org/wiki/Strategy_pattern)
+
+## Example
+

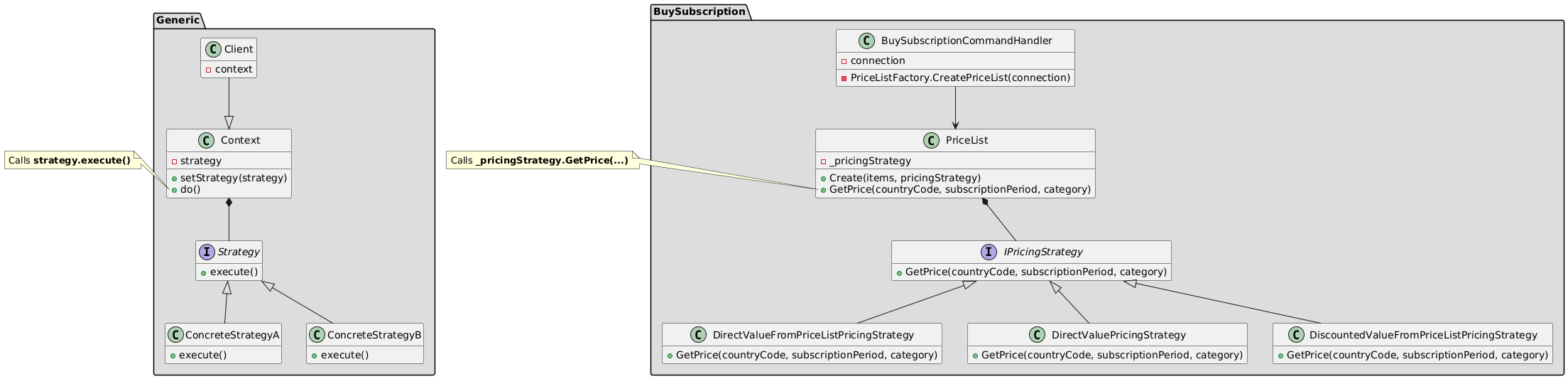

+### Model
+
+![](http://www.plantuml.com/plantuml/png/jLDDQnin4BtFhnZIYzFQsxin9lM6f8KU38PUYooDNL5z66cMPd7wtwlrHifs3Oqfs63GpBpvUBFpxYABm8qrS13ofzWJtZoIew3b3RwxF_tm2DA86B4scXmd4sSelMDwOlWDETWx-cZa89ZsBU07ZCIR5tEI_RTTGFd9RPUlKsBO2KcOSNZiulH4ic7gGQM93CIKWPykHgxEaGbREA-QTjDiempwmDgxS-uZGEsj5KvzJdz3eQp4aUoYdRKEMj9N7Vb1IFQXhUf0Wgcu9w_mmTWbt9VyVaYsTllDO9zzdObcid6A1J1Ox2FngKvgqJWERUqLJJ4EnbzJq5vDKNP9QRZHT_Yo_hig7l-tR25shmD9_YPCGm_1syBpgfskKJoUqaXTbKhgzqChGh87Rj6ItLA802y2d2d_oysUbrbpaBNtVZOh6e8on-8vkS-KyqPy1U0y4nhQCVfTRZMVAu-0jJ0cucAxp8AkYh0M7xTB8AUmImU0Vmkdfx9ylNl8hvxD-19Xw2ZJltLTbsTVc73v5OpMM63pURwCuJh7Ug_A-LHLDLhjNNerrlm1)
+
+### Code
+
+```csharp
+
+internal class BuySubscriptionCommandHandler : ICommandHandler<BuySubscriptionCommand, Guid>
+    {
+        private readonly IAggregateStore _aggregateStore;
+
+        private readonly IPayerContext _payerContext;
+
+        private readonly ISqlConnectionFactory _sqlConnectionFactory;
+
+        internal BuySubscriptionCommandHandler(
+            IAggregateStore aggregateStore,
+            IPayerContext payerContext,
+            ISqlConnectionFactory sqlConnectionFactory)
+        {
+            _aggregateStore = aggregateStore;
+            _payerContext = payerContext;
+            _sqlConnectionFactory = sqlConnectionFactory;
+        }
+
+        public async Task<Guid> Handle(BuySubscriptionCommand command, CancellationToken cancellationToken)
+        {
+            var priceList = await PriceListFactory.CreatePriceList(_sqlConnectionFactory.GetOpenConnection());
+
+            var subscription = SubscriptionPayment.Buy(
+                _payerContext.PayerId,
+                SubscriptionPeriod.Of(command.SubscriptionTypeCode),
+                command.CountryCode,
+                MoneyValue.Of(command.Value, command.Currency),
+                priceList);
+
+            _aggregateStore.AppendChanges(subscription);
+
+            return subscription.Id;
+        }
+    }
+
+public static class PriceListFactory
+    {
+        public static async Task<PriceList> CreatePriceList(IDbConnection connection)
+        {
+            var priceListItemList = await GetPriceListItems(connection);
+
+            var priceListItems = priceListItemList
+                .Select(x =>
+                    new PriceListItemData(
+                        x.CountryCode,
+                        SubscriptionPeriod.Of(x.SubscriptionPeriodCode),
+                        MoneyValue.Of(x.MoneyValue, x.MoneyCurrency),
+                        PriceListItemCategory.Of(x.CategoryCode)))
+                .ToList();
+
+            // This is place for selecting pricing strategy based on provided data and the system state.
+            IPricingStrategy pricingStrategy = new DirectValueFromPriceListPricingStrategy(priceListItems);
+
+            return PriceList.Create(
+                priceListItems,
+                pricingStrategy);
+        }
+
+        public static async Task<List<PriceListItemDto>> GetPriceListItems(IDbConnection connection)
+        {
+            var priceListItems = await connection.QueryAsync<PriceListItemDto>("SELECT " +
+$"[PriceListItem].[CountryCode] AS [{nameof(PriceListItemDto.CountryCode)}], " +
+$"[PriceListItem].[SubscriptionPeriodCode] AS [{nameof(PriceListItemDto.SubscriptionPeriodCode)}], " +
+$"[PriceListItem].[MoneyValue] AS [{nameof(PriceListItemDto.MoneyValue)}], " +
+$"[PriceListItem].[MoneyCurrency] AS [{nameof(PriceListItemDto.MoneyCurrency)}], " +
+$"[PriceListItem].[CategoryCode] AS [{nameof(PriceListItemDto.CategoryCode)}] " +
+"FROM [payments].[PriceListItems] AS [PriceListItem] " +
+"WHERE [PriceListItem].[IsActive] = 1");
+
+            var priceListItemList = priceListItems.AsList();
+            return priceListItemList;
+        }
+    }
+
+public class PriceList : ValueObject
+    {
+        private readonly List<PriceListItemData> _items;
+
+        private readonly IPricingStrategy _pricingStrategy;
+
+        private PriceList(
+            List<PriceListItemData> items,
+            IPricingStrategy pricingStrategy)
+        {
+            _items = items;
+            _pricingStrategy = pricingStrategy;
+        }
+
+        public static PriceList Create(
+            List<PriceListItemData> items,
+            IPricingStrategy pricingStrategy)
+        {
+            return new PriceList(items, pricingStrategy);
+        }
+
+        public MoneyValue GetPrice(
+            string countryCode,
+            SubscriptionPeriod subscriptionPeriod,
+            PriceListItemCategory category)
+        {
+            CheckRule(new PriceForSubscriptionMustBeDefinedRule(countryCode, subscriptionPeriod, _items, category));
+
+            return _pricingStrategy.GetPrice(countryCode, subscriptionPeriod, category);
+        }
+    }
+
+public interface IPricingStrategy
+    {
+        MoneyValue GetPrice(
+            string countryCode,
+            SubscriptionPeriod subscriptionPeriod,
+            PriceListItemCategory category);
+    }
+
+public class DiscountedValueFromPriceListPricingStrategy : IPricingStrategy
+    {
+        private readonly List<PriceListItemData> _items;
+
+        private readonly MoneyValue _discountValue;
+
+        public DiscountedValueFromPriceListPricingStrategy(
+            List<PriceListItemData> items,
+            MoneyValue discountValue)
+        {
+            _items = items;
+            _discountValue = discountValue;
+        }
+
+        public MoneyValue GetPrice(string countryCode, SubscriptionPeriod subscriptionPeriod, PriceListItemCategory category)
+        {
+            var priceListItem = _items.Single(x =>
+                x.CountryCode == countryCode && x.SubscriptionPeriod == subscriptionPeriod &&
+                x.Category == category);
+
+            return priceListItem.Value - _discountValue;
+        }
+    }
+
+ public class DirectValuePricingStrategy : IPricingStrategy
+    {
+        private readonly MoneyValue _directValue;
+
+        public DirectValuePricingStrategy(MoneyValue directValue)
+        {
+            _directValue = directValue;
+        }
+
+        public MoneyValue GetPrice(string countryCode, SubscriptionPeriod subscriptionPeriod, PriceListItemCategory category)
+        {
+            return _directValue;
+        }
+    }
+
+public class DirectValueFromPriceListPricingStrategy : IPricingStrategy
+    {
+        private readonly List<PriceListItemData> _items;
+
+        public DirectValueFromPriceListPricingStrategy(List<PriceListItemData> items)
+        {
+            _items = items;
+        }
+
+        public MoneyValue GetPrice(
+            string countryCode,
+            SubscriptionPeriod subscriptionPeriod,
+            PriceListItemCategory category)
+        {
+            var priceListItem = _items.Single(x =>
+                x.CountryCode == countryCode && x.SubscriptionPeriod == subscriptionPeriod &&
+                x.Category == category);
+
+            return priceListItem.Value;
+        }
+    }
+```
+### Description
+
+Let's introduce the concepts of the strategy pattern, so we can understand how the above example fits this pattern.
+
+* **Client** - The calling code.
+* **Context** - An object which maintains a reference to one of the *concrete strategies* and communicates with the *client*.
+* **Strategy interface** - An interface or abstract class that the *client* can use to set a concrete strategy at run-time, through the *context*.
+* **Concrete strategies** - One or more implementations of the *strategy interface*.
+
+---
+
+If we have a close look at our example of buying a `Subscription`, we can notice the elements of the strategy pattern.
+
+* `BuySubscriptionCommandHandler` is the calling code! Also the handler, indirectly via the `PriceListFactory` sets the current *strategy* of `PriceList`, so their combined interaction represents the **Client**.
+* `PriceList` is the object which maintains a reference to a pricing strategy, so it represents the **Context**.
+* `IPricingStrategy` represents the **Strategy interface**.
+* `DiscountedValueFromPriceListPricingStrategy`, `DirectValueFromPriceListPricingStrategy` and `DirectValuePricingStrategy` are the implementations of `IPricingStrategy` so they represent the **Concrete strategies**.
+
+---
+
+ The interaction of the `BuySubscriptionCommandHandler` and `PriceListFactory` is a good example of leveraging multiple design patterns. Check out [Factory Pattern](../Factory-Pattern/) to learn more.
+
+Strategy should not be confused with [Decorator](../Decorator-Pattern/)!!!
+*A strategy lets you change the guts of an object, while decorator lets you change the skin.*
diff --git a/docs/catalog-of-terms/Strategy-Pattern/strategy-pattern.puml b/docs/catalog-of-terms/Strategy-Pattern/strategy-pattern.puml
@@ -0,0 +1,76 @@
+@startuml
+package "Generic" #DDDDDD {
+class Client {
+ - context
+}
+
+class Context {
+ - strategy
+ + setStrategy(strategy)
+ + do()
+}
+
+interface Strategy {
+ + execute()
+}
+
+class ConcreteStrategyA {
+ + execute()
+}
+
+class ConcreteStrategyB {
+ + execute()
+}
+}
+
+package "BuySubscription" #DDDDDD {
+class BuySubscriptionCommandHandler {
+ - connection
+ - PriceListFactory.CreatePriceList(connection)
+}
+
+class PriceList {
+ - _pricingStrategy
+ + Create(items, pricingStrategy)
+ + GetPrice(countryCode, subscriptionPeriod, category)
+}
+
+interface IPricingStrategy {
+ + GetPrice(countryCode, subscriptionPeriod, category)
+}
+
+class DirectValueFromPriceListPricingStrategy {
+ + GetPrice(countryCode, subscriptionPeriod, category)
+}
+
+class DirectValuePricingStrategy {
+ + GetPrice(countryCode, subscriptionPeriod, category)
+}
+
+class DiscountedValueFromPriceListPricingStrategy {
+ + GetPrice(countryCode, subscriptionPeriod, category)
+}
+}
+
+hide empty members
+
+Client -down-|> Context
+Context *-- Strategy
+Strategy <|-- ConcreteStrategyA
+Strategy <|-- ConcreteStrategyB
+
+note left of Context::do
+ Calls <b>strategy.execute()</b>
+end note
+
+
+BuySubscriptionCommandHandler -down-> PriceList
+PriceList *-- IPricingStrategy
+IPricingStrategy <|-- DirectValueFromPriceListPricingStrategy
+IPricingStrategy <|-- DirectValuePricingStrategy
+IPricingStrategy <|-- DiscountedValueFromPriceListPricingStrategy
+
+note left of PriceList::GetPrice
+ Calls <b>_pricingStrategy.GetPrice(...)</b>
+end note
+@enduml
